Diesel Fire Pump Control Panel

CPA4000 Series AS2941:2013 Compliant

Control Panels Australia is a 100% owned and operated Australian company specialising in the design, build and supply of  AS2492 compliant Electric Fire and Jacking/Jockey Pump panels. Control Panels Australia is also exclusive authorized Australian distributor of SVE Corp AS 2491 compliant Diesel Fire and Jacking/Jockey Pumps Panels.  Our highly experienced engineers can provide a solution for your Pump Control Panel requirements.

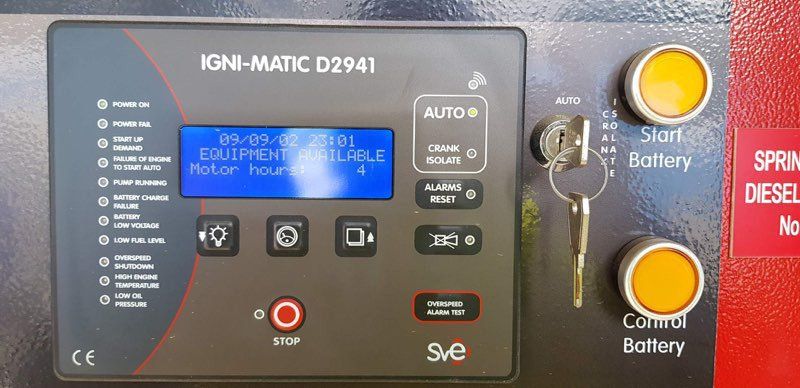

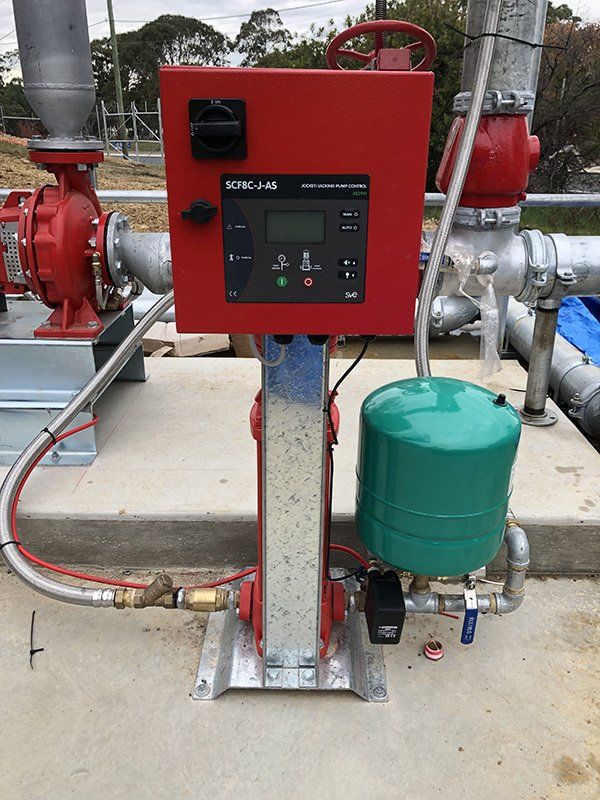

SVE Diesel Fire Pump Control Panel
SVE Diesel Fire Pump Control Panel
SVE Diesel Fire Pump Control Panel
SVE Diesel Fire Pump Control Panel
SVE Diesel Fire Pump Control Panel
SVE Diesel Fire Pump Control Panel

Additional Information

  • Technical Manual Diesel Fire Pump Control Panel

  • STANDARDS & TECHNICAL RULES
    1 Standard AS 2914 Ed.2013
    2 Standard AS/NZS 3000 Ed.2007
  • RANGE OF PRODUCTS (according to the type plate)
    1 Nominal supply voltage 230 V AC
    2 Nominal frequency 50Hz / 60Hz.
    RANGE OF PANELS ACCORDING TO BATTERY CHARGERS SCF122-DI 12070 SCF122-DI 12100 SCF122-DI 24035 SCF122-DI 24050
    Nominal Voltage 12 V DC 12 V DC 24 V DC 24 V DC
    Rated Amp 7 A 10 A 3,5 A 5 A
    DIN Power 96,6 W 138,0W 96,6 W 138,0 W
    Capacity of the batteries (C10) 200 Ah 285 Ah 100 Ah 142 Ah
  • CONSTRUCTIVE FEATURES
    1 Enclosure Ingress protection rating: IP65
    2 Protection against impacts degree: IK10 except PLC IGNIMATIC D122
    3 Fireproof degree: The fire is extinguished in <30s with dripping
    4 Display LCD 4 lines / 20 characters
    5 Cabling Free of halogens
    6 Fire resistance: RZ1 according to EN50200 (Max: 830º / 90min)
    7 Working temperatures From -5ºC to 50ºC
  • MEASURING INSTRUMENTS IN THE DISPLAY
    1 Batteries 2 Voltmeter: Battery voltage
    2 2 Ammeter: Battery charging Amp
    4 1 Battery equalization timer
    5 Engine 1 Fuel tank level meter
    6 1 Oil pressure gauge (sensor not included)
    7 1 Engine temperature thermometer (sensor not included)
    8 1 Engine speed meter (sensor not included)
  • PUMP & SYSTEM PROTECTION
    1 System not in autamatic mode
    2 Mains failure
    3 Engine over-speed
    4 Low oil pressure
    5 High engine temperature
    6 Low fuel level
    7 Start battery low voltage
    8 Monitor battery low voltage
    9 Start battery charger fail
    10 Monitor battery charger fail
    11 Heater overload tripped
    12 Start voltage fail
    13 Fail to start
    14 Pump pressure fail
    17 Pick up fail
    18 Coolant temperature fault
  • COMMUNICATIONS
    1 RS485 port (Optional) IGNIMATIC D122 controller configuration
    2 PC monitoring: Pump and installation general condition
    3 Ethernet port (Optional) IGNIMATIC D122 controller configuration
    4 PC monitoring: Pump and installation general condition
    5 Voltage free contacts :
    up to 30 V DC / 0,3 A
    Power not available
    6 Not in Automatic mode
    7 Fail to start / not pump pressure
    8 Grouped alarms (2 outputs)
    9 Power fail
    10 Pump running with pressure (2 Outputs)
  • LANGUAGES / OTHER FEATURES
    1 ENGLISH/ ESPAÑOL / ITALIANO / FRANÇAIS / PORTUGUES
    2 Engine heating management via temperature reading probe
    3 Engine hours
    4 Engine coolant circuit management
    5 Buzzer: 80dB
    6 Event historical: Last 47 events
